MSI数据处理流程

Version：2.0

更新了imzML文件转为csv的过程

添加了Python预处理imzML文件的方法

一、质谱成像技术

MSI是一种将质谱分析与空间分辨相结合的分析技术，能够同时获得样品中分子的化学组成信息和空间分布信息，实现对样品表面分子的”可视化”分析。
MSI在空间代谢组学中已然成为热门技术，本文介绍的就是对MSI数据处理简要的流程。

二、MSI数据

常用的数据类型有哪些？

在质谱成像领域内，你大概率会见到的两种文件格式：
● Raw文件格式
● imzML原始数据文件格式

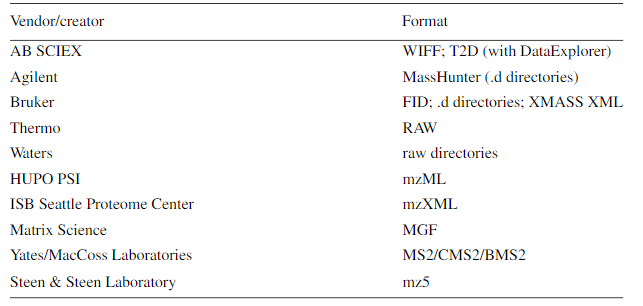

事实上不同厂家的质谱仪器生产出来的Raw质谱数据是不一样的，主流公司的数据格式如下表所示。

Raw和imzML分别含有哪些信息？

RAW保留更多原始信息：仪器状态日志、诊断信息、原始校准数据等等
mzML侧重核心数据：

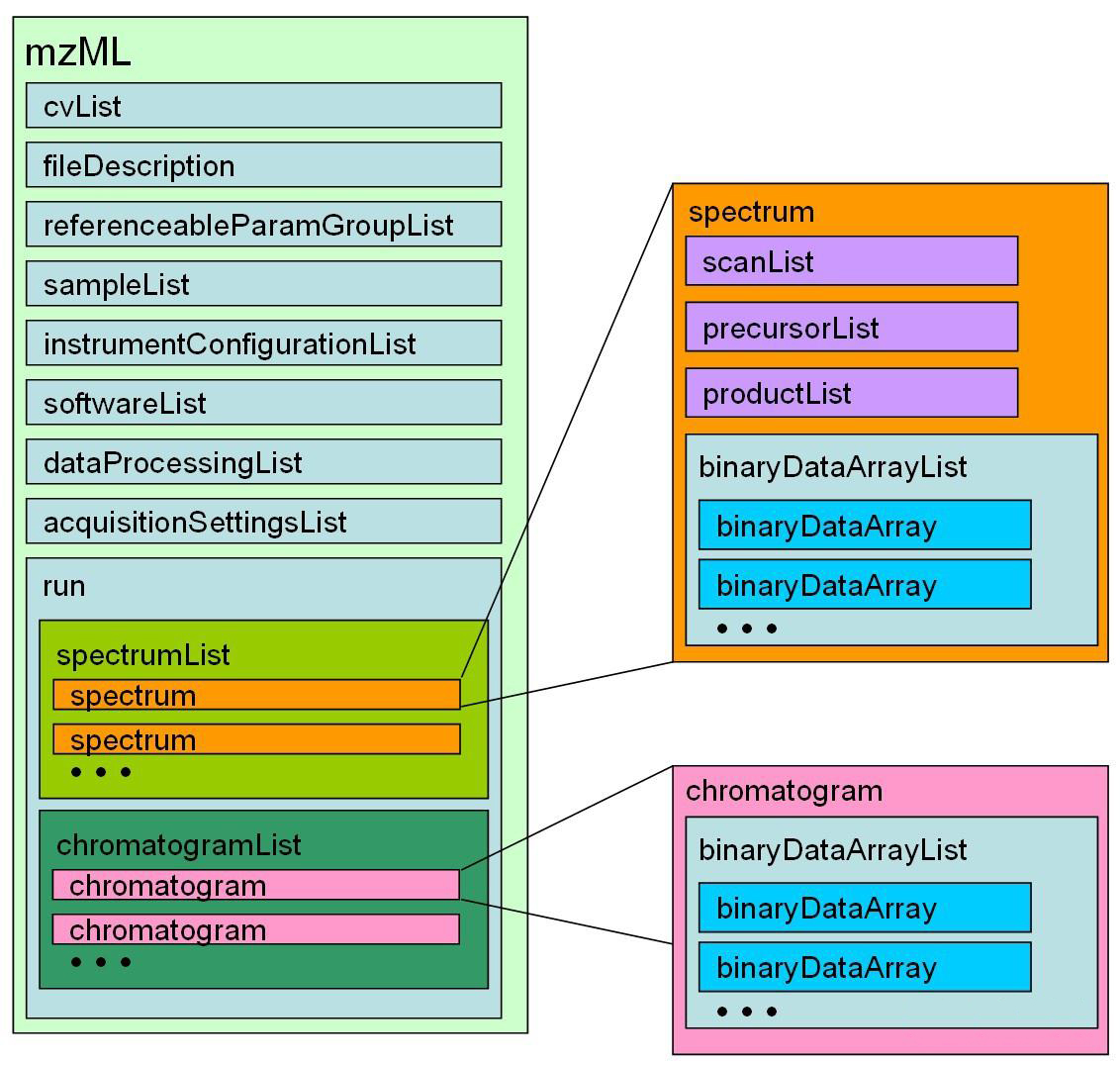

在mzML文件下，mzML标签通常来说明多数与质谱数据无关的参数及过程，run中的spectrum标签则包含着谱图信息。其中的m/z array和intensity array就是最重要的数据。

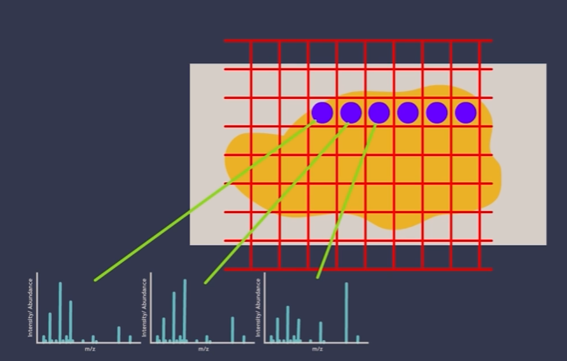

imzML相比元数据包含x、y、z坐标，并且带有一个.ibd的二进制数据文件。从光谱维度，它的每一行对应一个空间位置的完整质谱图；从空间维度，它的每一列固定m/z值在所有位置的强度，用于生成我们的离子图像。

如何从Raw数据转换成imzML数据？

理论上我们只需要知道扫描斑点数信息，就可以直接从Raw文件中计算出质谱成像所需要的空间坐标信息。
本文侧重点在于对imzML文件的预处理，对于Raw文件可以用以下的链接提供的软件来进行Raw to imzML的转换，试着使用他给出的示例文件来进行练习。
https://www.ms-imaging.org/imzml/software-tools/raw-to-imzml-converter/
在后续更新中我会将这一步进行时的截图放上。

MALDI？DESI？

我们常见到的数据可能由MALDI(基质辅助激光解吸电离)和DESI(解吸电喷雾电离)两种技术得出。MALDI的空间分辨率高，但有着复杂的样品制备流程以及需要真空电离的条件。DESI则直接在大气压中进行电离，从而减少样品准备过程，但相对的空间分辨率低于MALDI。

三、imzML数据预处理(Cardinal)

Cardinal包安装

imzML文件的数据处理有很多不同的方式，在熟悉流程之后，你可以自己编写脚本来实现。
本文使用Cardinal包来进行预处理。Cardinal包支持MALDI和DESI的MSI工作，可以对生物样品进行基于质谱实验的统计分析。
在开始前，你需要自己安装好RStudio或其他IDE。安装Cardinal包，使用以下命令：

if (!require("BiocManager", quietly = TRUE))
    install.packages("BiocManager")

BiocManager::install("Cardinal")

别忘了把刚安装好的包加载上：

# 加载包
library(Cardinal)

到这里如果没有报错，说明安装成功了，你可以查看官方文档来进行进一步的了解。

browseVignettes("Cardinal")

或者参考：

读取imzML文件

# 读取continuous数据
path_continuous <- file.path ("C:", "Users", "你的文件地址", fsep="\\")
mse <- readMSIData(path_continuous)

我们可以读取一些数据出来查看：

mz(mse)[1:10] # 提取前10个mz
run(mse)[1:10]# 提取前10个批次信息
featureData(mse)[1:10]# 提取前10个feature信息
pixelData(mse)[1:10]# 提取前10个像素信息
plot(mse, pixel=c(211))# 可视化单个像素，纵轴为强度，横轴为m/z
plot(mse, pixel=c(211, 611))# 可视化多个像素，纵轴为强度，横轴为m/z
image(mse,mz=1200)# 单m/z空间分布可视化，注意此处m/z可能在你的数据中不存在，选取你数据中有的m/z，可以运行后参考RStudio给出的提示

大致了解你手中的imzML数据后，可以开始进行数据预处理了。

预处理流程

高斯平滑去噪

高斯平滑可以减少随机噪声，提高信噪比。

mse_smoothed <- smoothSignal(mse,
                            method = "gaussian",
                            window = 5,
                            sd = 2,
                            units = "ppm")

调整大小适中的窗口，可以有效去噪同时保留峰形

谱对齐

由于仪器采集时条件不可能完全一致，产生一些偏移是必然的。初步对齐可以校正不同空间位置的质量偏移。

mse_aligned <- peakAlign(mse_smoothed,
                         tolerance = 1500,
                         units = "ppm",
                         BPPARAM = MulticoreParam())

增大tolerance可提高匹配率，但可能引入错误匹配

TIC标准化

TIC标准化可以校正不同像素点之间的整体强度差异。

mse_normalized <- normalize(mse_aligned,
                           method = "tic",
                           scale = TRUE)

peakpick选峰

一般来说，我们需要选取显著的质谱峰，减少数据维度。

mse_peaks <- peakPick(mse_normalized, method="filter", SNR=5)

增大SNR可减少假阳性，但可能丢失低丰度峰
调整peakWidth可适应不同的峰形特征

峰合并

合并相近的峰以减少冗余。

mse_done <- bin(mse_peaks,spectra="intensity",index="mz",method="linear", resolution=5, units="ppm")

改变resolution可改变合并的精度，但可能丢失一些峰。需要你根据实际情况调整。

查看处理结果

现在，你可以使用image函数来比较预处理前后的图像结果。

输出

#save
imzfile <- tempfile(fileext="你的文件名.imzML")
writeMSIData(mse_done, imzfile)
list.files(imzfile)

四、imzML转可处理文件

我们保存了预处理后的imzML文件，要进行后续的训练分析，则需要把这些文件转换为另一些可处理的文件。
这里我用了刘思扬师兄的Python代码来完成。

加载需要的库

import os
import numpy as np
import pandas as pd
from scipy import sparse
from scipy.ndimage import gaussian_filter1d
from pyimzml.ImzMLParser import ImzMLParser
from pyimzml.ImzMLWriter import ImzMLWriter
import csv

设置路径及读取imzML文件

首先要读取我们处理好的imzML文件，并设置好保存路径。

# Define file paths
input_path = '/你的文件路径/xx.imzML'
output_path = '/你的保存路径/xx.imzML'
output_dir = "/你的保存路径"
sorted_peaklist_file = /你的peaklist保存路径/xx.txt'

# Create output directory if it doesn't exist
if not os.path.exists(output_dir):
    os.makedirs(output_dir)

def __init__(self, mz, intensity):
        self.mz = mz
        self.intensity = intensity

# Process IMZML file
parser = ImzMLParser(input_path)
coordinates = []
mz_values_list = []
intensity_values_list = []

提取质谱峰数据并保存到csv文件

def extract_imzml_peaks(imzml_file, output_dir):
    parser = ImzMLParser(imzml_file)
    for i, (x, y, z) in enumerate(parser.coordinates, start=1):
        mzs, intensities = parser.getspectrum(i - 1)
        output_filename = os.path.join(output_dir, f"peaks_{i:05d}.csv")

        with open(output_filename, 'w', newline='') as csvfile:
            csvwriter = csv.writer(csvfile)
            csvwriter.writerow(['mz', 'intensity'])
            for mz, intensity in zip(mzs, intensities):
                csvwriter.writerow([mz, intensity])

extract_imzml_peaks(output_path, output_dir)

保存位置信息到csv文件

# Save coordinates to CSV
imzml = ImzMLParser(output_path)
coordinates = np.array(imzml.coordinates)[:, :2]
np.savetxt('/Users/ForRiver/OneDrive/Desktop/Pre/BIONET/preprocess/compare-neg/cood-gz4_5.csv', coordinates, delimiter=',')

csv文件根据坐标去零

# Read sparse data and coordinates
data0 = sparse.load_npz('/Users/ForRiver/OneDrive/Desktop/Pre/BIONET/preprocess/compare-neg/gz4_5.npz').toarray()
data = data0[1:, :]
coordinates = np.loadtxt('/Users/ForRiver/OneDrive/Desktop/Pre/BIONET/preprocess/compare-neg/cood-gz4_5.csv', delimiter=',')

x, y = coordinates[:, 0].astype(int), coordinates[:, 1].astype(int)
output_mat = np.zeros((np.max(y) + 1, np.max(x) + 1, data.shape[1]))
for i in range(len(data)):
    output_mat[y[i], x[i]] = data[i]

output_mat = np.array([list(output_mat[i]) for i in range(len(output_mat)) if np.sum(output_mat[i]) != 0])
output_mat = np.array([list(output_mat[:, i]) for i in range(len(output_mat[0])) if np.sum(output_mat[:, i]) != 0])
data = sparse.bsr_matrix(output_mat.reshape(output_mat.shape[0] * output_mat.shape[1], output_mat.shape[2]))
sparse.save_npz('/Users/ForRiver/OneDrive/Desktop/Pre/BIONET/preprocess/compare-neg/gz4_5_%d_%d.npz' % (output_mat.shape[0], output_mat.shape[1]), data)


print("Data has been saved.")

这样，我们就保存好了需要的可处理文件。你可以在文件夹中找到一系列的peaks.csv文件、坐标文件和peaklist。

五、Python进行预处理全流程

这部分的代码由组里提供，包含了上述的全流程。你可以更换所有的path来进行处理，具体不再解释。

import os
import numpy as np
import pandas as pd
from scipy import sparse
from scipy.ndimage import gaussian_filter1d
from pyimzml.ImzMLParser import ImzMLParser
from pyimzml.ImzMLWriter import ImzMLWriter
import csv

# Define file paths
input_path = '/Users/ForRiver/OneDrive/Desktop/Pre/BIONET/preprocess/slice_1.imzML'
output_path = '/Users/ForRiver/OneDrive/Desktop/Pre/BIONET/preprocess/compare-neg/gz4_5.imzML'
output_dir = "/Users/ForRiver/OneDrive/Desktop/Pre/BIONET/preprocess/compare-neg/export-gz4_5/"
sorted_peaklist_file = '/Users/ForRiver/OneDrive/Desktop/Pre/BIONET/preprocess/compare-neg/peaklist-neg-gz4_5-sort.txt'

# Create output directory if it doesn't exist
if not os.path.exists(output_dir):
    os.makedirs(output_dir)


class SpectrumProcessor:
    def __init__(self, mz, intensity):
        self.mz = mz
        self.intensity = intensity

    @staticmethod
    def peak_picking(mz_array, intensity_array, snr=1, sigma=2.0):
        """
        Identify peaks in the intensity array based on a signal-to-noise ratio (SNR) threshold.

        :param mz_array: Array of m/z values.
        :param intensity_array: Array of intensity values corresponding to the m/z values.
        :param snr: Signal-to-noise ratio threshold for peak detection.
        :param sigma: Standard deviation for Gaussian kernel used in smoothing.
        :return: Arrays of m/z values and intensities for detected peaks.
        """
        # Smooth the intensity array to reduce noise
        smoothed_intensity = gaussian_filter1d(intensity_array, sigma=sigma)

        # Calculate the mean and standard deviation of the smoothed intensity array
        mean_intensity = np.mean(smoothed_intensity)
        std_intensity = np.std(smoothed_intensity)

        # Identify peaks where intensity is greater than mean + snr * std
        peaks = smoothed_intensity > (mean_intensity + snr * std_intensity)

        # Return the m/z values and intensities of the detected peaks
        return mz_array[peaks], intensity_array[peaks]

    def binning(self, Da):
        """
        Binning algorithm for spectra.
        :return: 1D numpy array, binned spectrum.
        """
        bin_size = int(Da / (self.mz[1] - self.mz[0]))
        bin_spectrum = np.mean(
            np.pad(self.intensity, (0, bin_size - len(self.intensity) % bin_size), mode='constant', constant_values=0)
            .reshape(-1, bin_size),
            axis=1)

        mz_values1 = self.mz[::bin_size]
        return mz_values1, bin_spectrum


# Process IMZML file
parser = ImzMLParser(input_path)
coordinates = []
mz_values_list = []
intensity_values_list = []

for idx, (x, y, z) in enumerate(parser.coordinates):
    mz_array, intensity_array = parser.getspectrum(idx)
    mz_peaks, intensity_peaks = SpectrumProcessor.peak_picking(mz_array, intensity_array)
    coordinates.append((x, y, z))
    print(idx)
    mz_values_list.append(mz_peaks)
    intensity_values_list.append(intensity_peaks)

# Write processed data to new IMZML file
with ImzMLWriter(output_path) as writer:
    for idx, (mz_peaks, intensity_peaks) in enumerate(zip(mz_values_list, intensity_values_list)):
        x, y, z = coordinates[idx]
        print(idx)
        writer.addSpectrum(mz_peaks, intensity_peaks, (x, y, z))


# Extract peaks to CSV files
def extract_imzml_peaks(imzml_file, output_dir):
    parser = ImzMLParser(imzml_file)
    for i, (x, y, z) in enumerate(parser.coordinates, start=1):
        mzs, intensities = parser.getspectrum(i - 1)
        output_filename = os.path.join(output_dir, f"peaks_{i:05d}.csv")

        with open(output_filename, 'w', newline='') as csvfile:
            csvwriter = csv.writer(csvfile)
            csvwriter.writerow(['mz', 'intensity'])
            for mz, intensity in zip(mzs, intensities):
                csvwriter.writerow([mz, intensity])


extract_imzml_peaks(output_path, output_dir)

# Save coordinates to CSV
imzml = ImzMLParser(output_path)
coordinates = np.array(imzml.coordinates)[:, :2]
np.savetxt('/Users/ForRiver/OneDrive/Desktop/Pre/BIONET/preprocess/compare-neg/cood-gz4_5.csv', coordinates, delimiter=',')


def peak_filter(PATH, min_frequency=0.005, type='MATLAB', file=' '):
    if type == 'MATLAB':
        path = PATH

        m = len(os.listdir(path))
        mz = []
        for i in range(1, m + 1):
            data = pd.read_csv(path + str(i), header=None)
            data = data.values
            mz.extend(list(data[:, 0]))
        mzs = sorted(set(np.around(mz, 4)))
        print('all mz number is ', len(mzs))
        dict_total = {}
        for i in mzs:
            dict_total[i] = 0
        for i in range(m):
            data = pd.read_csv(path, str(i + 1), header=None)
            data = data.values
            _u = np.around(data[:, 0], 4)  # 4 significant digits
            for j in _u:
                dict_total[j] += 1

        i = 0
        peak_list = []
        for key, value in dict_total.items():
            if value > m * min_frequency:
                i += 1
                peak_list.append(key)
        print('filter peak is ', len(peak_list))
        np.savetxt('peak_list3', peak_list)

        output_mat = np.zeros((m, len(peak_list)))

        for i in range(m):
            print('processing ', i, 'piex')
            data = pd.read_csv(path, str(i + 1), header=None)
            data = data.values
            _u = np.around(data[:, 0], 4)  # 4 significant digits
            for j in range(len(_u)):
                if _u[j] in peak_list:
                    output_mat[i, peak_list.index(_u[j])] = data[j, 1]
        return output_mat

    if type == 'R':
        path = PATH

        m = len(os.listdir(path))
        mz = []
        for i in range(1, m):
            if i % 100 == 0:
                print(i)
            k = '{:0>5d}'.format(i)  # '{:0>5d}'
            data = pd.read_csv(path + file + k + '.csv', header=None)
            data = data.values[1:]
            mz.extend(list(data[:, 0]))
        mz = [float(x) for x in mz]
        mzs = list(set(mz))
        print('all mz number is ', len(mzs))
        dict_total = {}
        for i in mzs:
            dict_total[i] = 0
        for i in range(1, m):
            if i % 100 == 0:
                print(i)
            k = '{:0>5d}'.format(i)  # {:0>5d}
            data = pd.read_csv(path + file + k + '.csv', header=None)
            data = data.values[1:]
            dataint = [float(x) for x in data[:, 0]]
            dataint2 = [float(x) for x in data[:, 1]]
            _u = dataint
            threhold = np.percentile(dataint2, 95) * 0.001
            for j in range(len(_u)):
                if dataint2[j] >= threhold:
                    dict_total[_u[j]] += 1

        i = 0
        peak_list = []
        for key, value in dict_total.items():
            if value > m * min_frequency:
                i += 1
                peak_list.append(key)
        print('after filter peak is ', len(peak_list))

        output_mat = np.zeros((m, len(peak_list)))

        for i in range(1, m):
            k = '{:0>5d}'.format(i)
            if i % 100 == 0:
                print(i)
            data = pd.read_csv(path + file + k + '.csv', header=None)
            data = data.values[1:]
            dataint = [float(x) for x in data[:, 0]]
            _u = dataint
            for j in range(len(_u)):
                if _u[j] in peak_list:
                    output_mat[i, peak_list.index(_u[j])] = data[j, 1]
        return output_mat, peak_list


# Filter peaks and save
output_mat, peak_list = peak_filter(output_dir, min_frequency=0.05, type='R', file='peaks_')
spa_data = sparse.bsr_matrix(output_mat)
sparse.save_npz('/Users/ForRiver/OneDrive/Desktop/Pre/BIONET/preprocess/compare-neg/gz4_5.npz', spa_data)
np.savetxt('/Users/ForRiver/OneDrive/Desktop/Pre/BIONET/preprocess/compare-neg/peaklist-gz4_5', peak_list)

# Read sparse data and coordinates
data0 = sparse.load_npz('/Users/ForRiver/OneDrive/Desktop/Pre/BIONET/preprocess/compare-neg/gz4_5.npz').toarray()
data = data0[1:, :]
coordinates = np.loadtxt('/Users/ForRiver/OneDrive/Desktop/Pre/BIONET/preprocess/compare-neg/cood-gz4_5.csv', delimiter=',')

x, y = coordinates[:, 0].astype(int), coordinates[:, 1].astype(int)
output_mat = np.zeros((np.max(y) + 1, np.max(x) + 1, data.shape[1]))
for i in range(len(data)):
    output_mat[y[i], x[i]] = data[i]

output_mat = np.array([list(output_mat[i]) for i in range(len(output_mat)) if np.sum(output_mat[i]) != 0])
output_mat = np.array([list(output_mat[:, i]) for i in range(len(output_mat[0])) if np.sum(output_mat[:, i]) != 0])
data = sparse.bsr_matrix(output_mat.reshape(output_mat.shape[0] * output_mat.shape[1], output_mat.shape[2]))
sparse.save_npz('/Users/ForRiver/OneDrive/Desktop/Pre/BIONET/preprocess/compare-neg/gz4_5_%d_%d.npz' % (output_mat.shape[0], output_mat.shape[1]), data)

# Sort and save peak list
with open('/Users/ForRiver/OneDrive/Desktop/Pre/BIONET/preprocess/compare-neg/peaklist-gz4_5', 'r') as file:
    lines = file.readlines()
lines = [line.strip() for line in lines]
lines.sort()
with open(sorted_peaklist_file, 'w') as file:
    for line in lines:
        file.write(f"{line}\n")
print("peaklist_saved")

# Reorder data columns based on sorted peak list
data0 = sparse.load_npz(
    '/Users/ForRiver/OneDrive/Desktop/Pre/BIONET/preprocess/compare-neg/gz4_5_%d_%d.npz' % (output_mat.shape[0], output_mat.shape[1])).toarray()
with open('/Users/ForRiver/OneDrive/Desktop/Pre/BIONET/preprocess/compare-neg/peaklist-gz4_5', 'r') as f:
    reference = [float(x.strip()) for x in f.readlines()]
with open(sorted_peaklist_file, 'r') as f:
    target = [float(x.strip()) for x in f.readlines()]

indices = [target.index(value) if value in target else -1 for value in reference]
data = np.vstack([data0[:, idx] for idx in indices if idx != -1]).T
np.save('/Users/ForRiver/OneDrive/Desktop/Pre/BIONET/preprocess/compare-neg/gz4_5', data)

print("Data has been saved.")

写在最后

这篇文章主要用于自己学习MSI预处理步骤以及对BIONET新成员介绍imzML文件的预处理流程。目前处理过的数据还很少，大家在测试时候也可以自己多试试几个参数看看效果（虽然效果并不是特别明显）。如果有错误的烦请指正。
